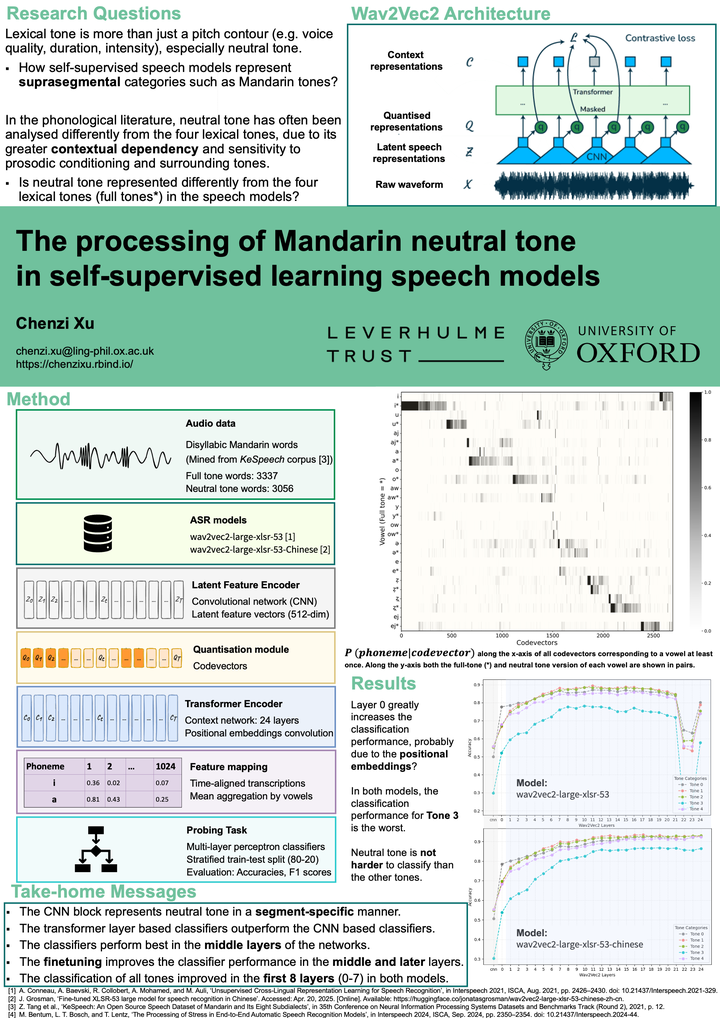

The processing of neutral tone in self-supervised learning speech models

The present study explores how self-supervised learning (SSL) speech models represent Mandarin neutral tone, in comparison to the four lexical tones. In Standard Mandarin, neutral tone displays greater variability in their pitch realisation than the canonical four citation tones and is largely influenced by its neighbouring tonal contexts. In the phonological literature, neutral tone has been analysed as the fifth lexical tone, a tone sandhi phenomenon, or a product of tonal neutralisation resulting from the interaction of stress [1]. While some scholars have proposed a phonological specification for neutral tone (e.g. [2, 3]), others have argued for its underspecified representation. Acoustic evidence suggests that neutral tone may often manifest post-lexical boundary tonal features, distinguishing it from the four lexical tones [4].

The main analysis was performed on two publicly available pre-trained models: wav2vec2-large-xlsr-53 [5] and wav2vec2-large-xlsr-53-chinese [6]. The base multilingual XLSR model was trained on unlabelled speech data from multiple datasets including Multilingual LibriSpeech, Common Voice, and Babel, encompassing 53 languages. The latter model was the same base model finetuned for Mandarin Chinese. Both models consist of a feature extraction network of 7 convolutional neural network (CNN) layers and a context network of 24 transformer layers. During pre-training, the CNN block output is quantised into codewords, and these discrete representations over 25 ms windows allow us to probe potential abstract representations of neutral tone at the segmental level. The study used 6393 disyllabic Mandarin words (3337 words with two full tones, 3056 words with a neutral tone) mined from recordings in the Beijing Mandarin subset of the KeSpeech corpus [7], filtered to include only speakers from Beijing to minimise the influence of regional accent on the use of neutral tone. The identification of neutral-toned words was based on a list of words with obligatory neutral tone, as defined by the Standard Mandarin (Putonghua) Proficiency Test, as well as words with a grammatical particle such as de, the modifier marker. It is worth noting that automatic tonal transcriptions of Chinese characters were often inaccurate for neutral tone and were therefore not used.

The study applies the W2V models to all words in the dataset and extracted the feature encoder outputs (CNN) and the outputs of every Transformer layer. Then a layer-specific Multi-Layer Perceptron (MLP) classifiers were trained to predict the tone categories, to understand the tonal information captured in the layers of the speech models. Classifier probes were evaluated using Accuracies, F1 scores, and Matthews correlation coefficients. In addition, codevectors for all frames of each word were generated to test where there are sets of codevectors that differentiate the lexical tone and neutral tone versions of a given vowel.

The findings suggest that (1) the CNN block represents neutral tone in a segment-specific manner, similar to English stress [8], with different codevectors for full tone and neutral tone versions of a given vowel. (2) The transformer layer based classifiers outperform the CNN based classifiers, driven by the enriched context in the transformer block. (3) The classifier performs best in the middle layers of the networks. (4) The finetuned model improves the classifier performance in the middle and later layers, especially the last three layers. (5) The classification of all tones improved in the first 8 layers (0-7) in both models.

References

[1] L. Liu, “20 shiji hanyu qingsheng yanjiu zongshu 20 ([An overview of research on the Chinese neutral tone in the 20th century),” Yu wen yan jiu , no. 3, pp. 43–47, 2002.

[2] M. Yip, “The tonal phonology of Chinese,” Thesis, Massachusetts In- stitute of Technology, 1980.

[3] H. Lin, “Mandarin Neutral Tone as a Phonologically Low Tone,” Jour- nal of Chinese Language and Computing, vol. 16, no. 2, pp. 121–134, Jan. 2006.

[4] C. Xu and C. Zhang, “A cross-linguistic review of citation tone pro- duction studies: Methodology and recommendations,” The Journal of the Acoustical Society of America, vol. 156, no. 4, pp. 2538–2565, Oct. 2024.

[5] A. Conneau, A. Baevski, R. Collobert, A. Mohamed, and M. Auli, “Un- supervised Cross-Lingual Representation Learning for Speech Recog- nition,” in Interspeech 2021. ISCA, Aug. 2021, pp. 2426–2430.

[6] J. Grosman, “Fine-tuned XLSR-53 large model for speech recog- nition in Chinese,” https://huggingface.co/jonatasgrosman/wav2vec2-large-xlsr-53-chinese-zh-cn, 2021.

[7] Z. Tang, D. Wang, Y. Xu, J. Sun, X. Lei, S. Zhao, C. Wen, X. Tan, C. Xie, S. Zhou, R. Yan, C. Lv, Y. Han, W. Zou, and X. Li, “KeSpeech: An Open Source Speech Dataset of Mandarin and Its Eight Subdi- alects,” in 35th Conference on Neural Information Processing Systems Datasets and Benchmarks Track (Round 2), 2021, p. 12.

[8] M. Bentum, L. T. Bosch, and T. Lentz, “The Processing of Stress in End-to-End Automatic Speech Recognition Models,” in Interspeech 2024. ISCA, Sep. 2024, pp. 2350–2354.
